PRODUCTS
PRODCUTS overview

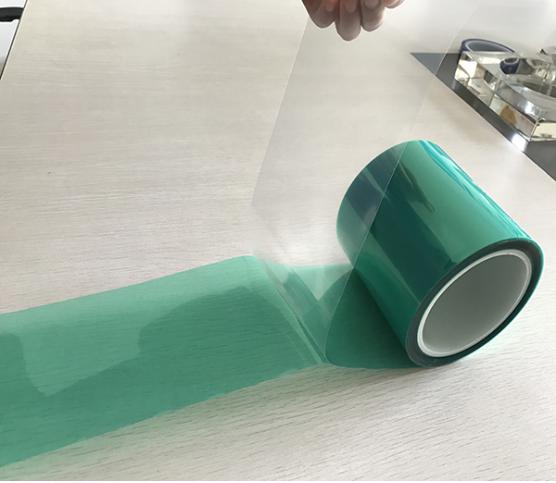

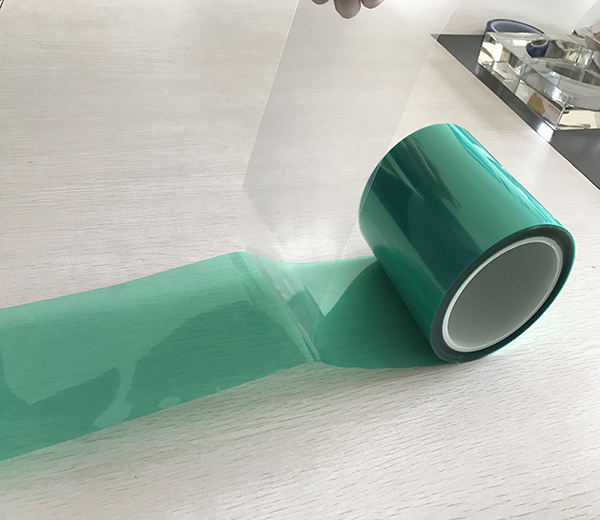

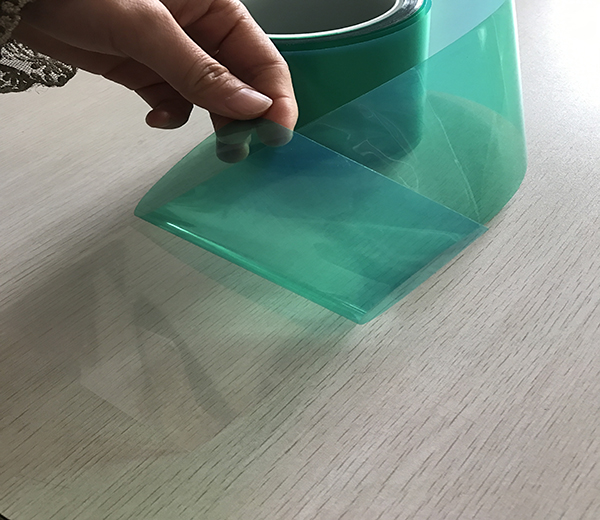

This tape is with polyester film as the basic carrier, and coated with pressure sensitive silicone adhesive, and combined with fluorine release film. The discs can be removed from the liner very easily after die-cutting, so it’s very suitable for the production line of electric factories. We can make different shapes and sizes according to the customers’ requirements. It can endure high temperature up to 200℃, and with it’s excellent easy removal and good adhesion, it has been widely used for the masking and protection of electrical parts.
|
|
→ fluorine release film |
|
|
→ silicone |
|
|
→ polyester film |
|
ITEMS |
DATAS |
|
Backing |
0.05mm polyester film |
|
Adhesive |
silicone |
|
Color |
Green |
|
Thickness (mm) |
0.08 |
|
Length |
100M MORE OR LESS |
|
Width |
500mm/1020mm |
|
Tensile Strength (N/25mm） |
≥120 |
|
Elongation (%） |
≥70 |
|
Breakdown strength |
≥150 |
|
Voltage resistance (KV） |
5 |
|
Adhesion (N/25mm） |
≥8 |
|
Temperature Resistance (℃） |
200℃ |
