double side tape

double side glass cloth tape

Online inquiry

products names:

Country:

Email:

The Phone:

Name:

Quantity:

Leave a message:

PRODCUTS overview

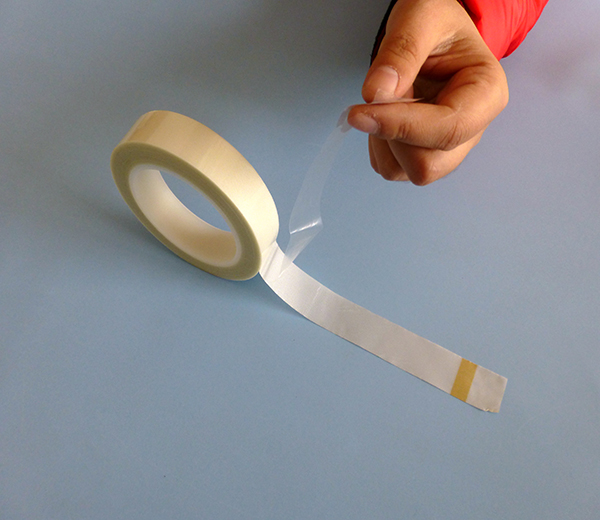

The doulbe side tape is with glass cloth as the basic carrier, and coated with the pressure-sensitive silicone adhesive on both sides, and combined with the fluorine release liner. It has excellent high temperature resistance, easy removal, and good adhesion.

Mostly applied in the fixation of the surface board and the other parts during the production process of the electrical parts of digital products. Especially because of it’s excellent high tempearture resistance, it can also be used for the temperaly fixation, masking and protection of the accessories under high temperature process. It features good temperature resistance, good tensile strength, good chemical resistance, no residue, in line with ROHS and halogen free etc.

ITEMS

DATAS

Backing

Glass cloth

Color

White

Adhesive

Silicone

Length(m)

20

Thickness (mm)

0.2

Adhesion (N/25mm

8

TensileStrength (N/25mm

380

Elongation (%

5

Temperature Resistance (℃

200

Voltage resistance (KV

3
