Polyimide tape

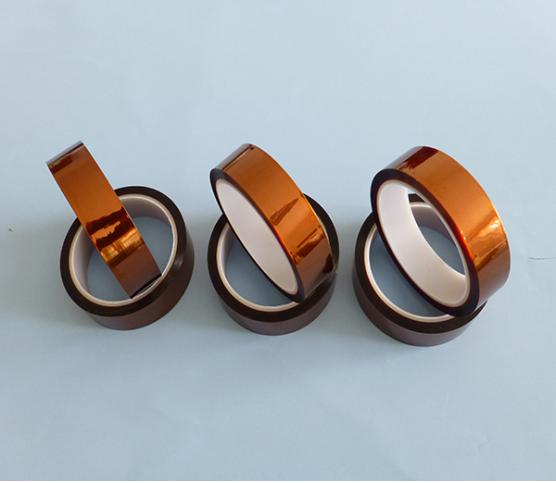

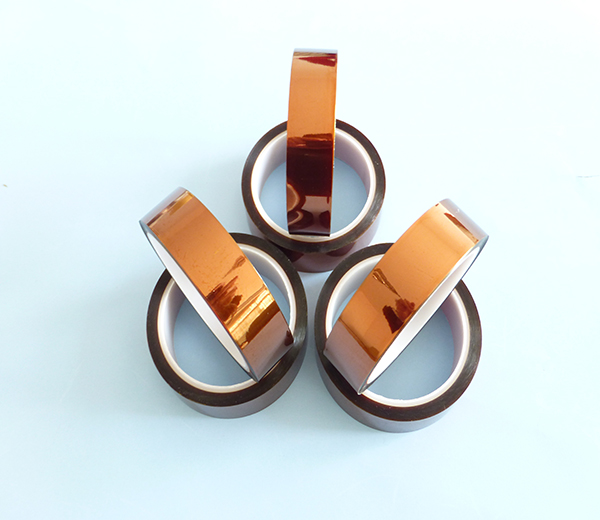

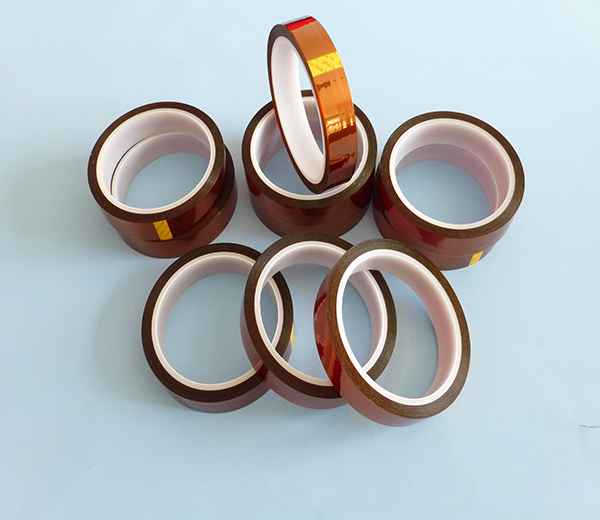

1mil polyimide tape

Online inquiry

products names:

Country:

Email:

The Phone:

Name:

Quantity:

Leave a message:

PRODCUTS overview

1mil polyimide tape is with 0.025mm polyimide film as the basic carrier, and coated with imported pressure sensitive silicone adhesive. It can endure high temperature up to 260 within half an hour, and it also features like: electrical insulation, radiation resistance, solvement resistance etc. It’s mostly applied for the motor insulation, gold finger protection of PCB during wave soldering etc. Without any residue after the tape is removed from the gold finger.

Items

Datas

Backing

Polyimide film 0.025mm

Adhesion

Silicone

Color

Amber

Thickness (mm)

0.06

Length (m)

33M

Tensile Strength (N/25mm

140

Elongation (%

40

Breakdown strength (N/25mm)

150

Voltage resistance (KV

6

Adhesion (N/25mm

5

Temperature Resistance (

260
