PRODCUTS overview

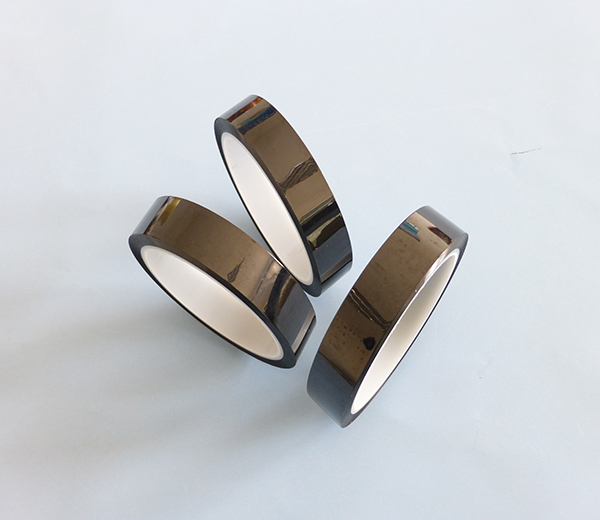

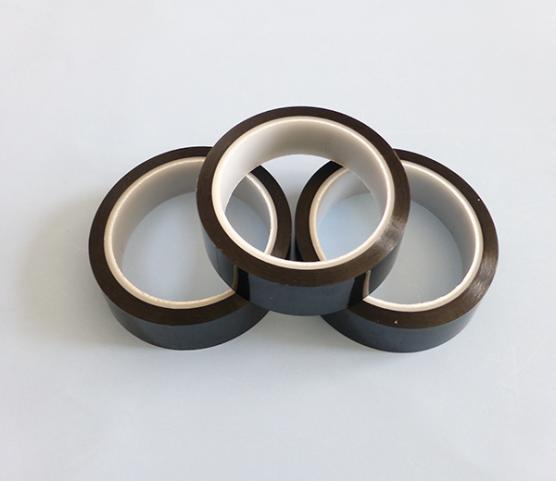

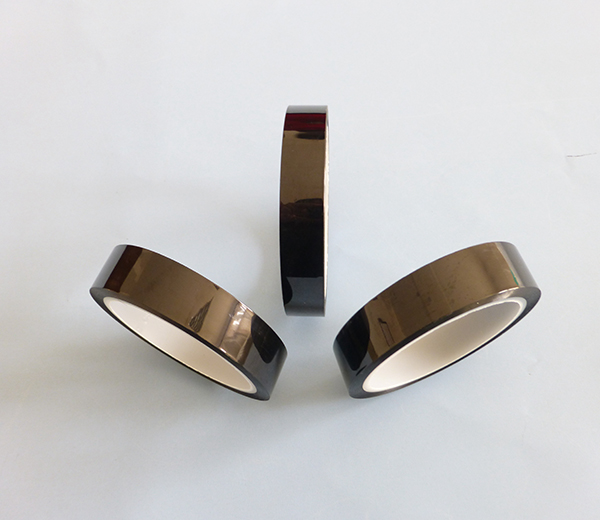

Black polyimide tape is with black polyimide
film as the basic carrier, and coated with imported pressure sensitive silicone
adhesive. It can endure high temperature up to 260℃ within half
an hour, and it also features like: electrical insulation, radiation
resistance, solvement resistance etc. It’s mostly applied for the motor
insulation, gold finger protection of PCB during wave soldering etc. Without
any residue after the tape is removed from the gold finger.
Items
Datas
Backing
Polyimide film
Adhesion
silicone
Color
black
Thickness (mm)
0.06
Length (m)
33M
Tensile Strength (N/25mm)
≥140
Elongation (%)
≥40
Breakdown
strength (N/25mm)
≥150
Voltage resistance (KV)
5
Adhesion (N/25mm)
6
Temperature Resistance (℃)
260℃ within half an hour
