Polyimide tape

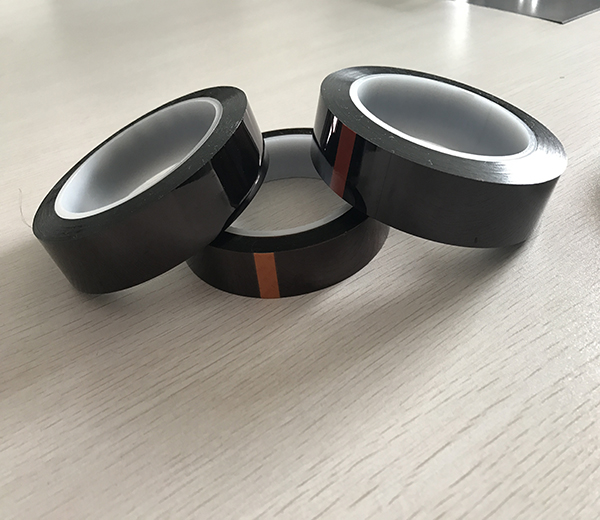

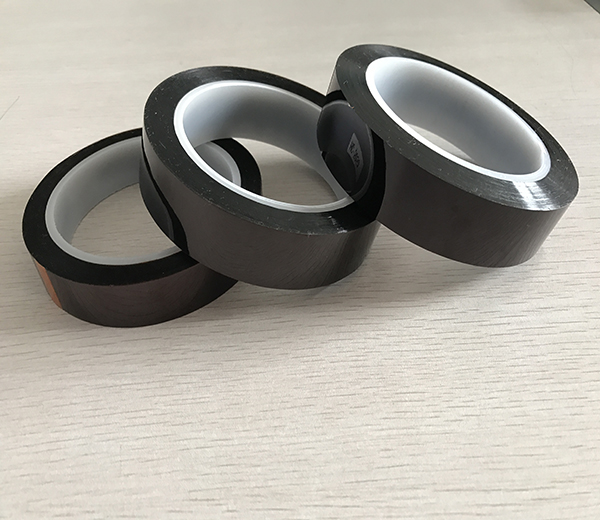

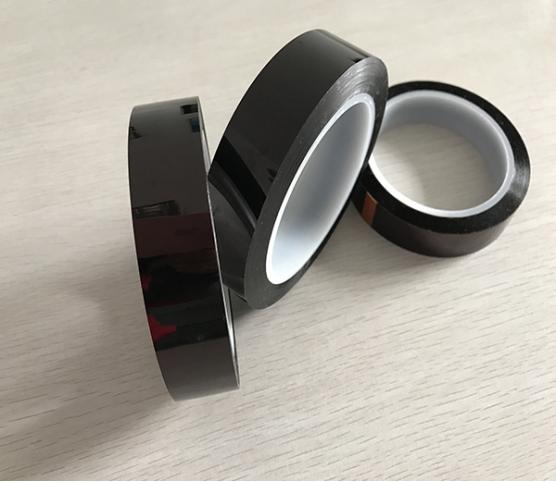

3mil polyimide tape

Online inquiry

products names:

Country:

Email:

The Phone:

Name:

Quantity:

Leave a message:

PRODCUTS overview

3mil polyimide tape is with 0.075mm polyimide film as the basic carrier, and coated with imported pressure sensitive silicone adhesive. It can endure high temperature up to 260 within half an hour, and it also features like: electrical insulation, radiation resistance, solvement resistance etc. It’s mostly applied for the motor insulation, gold finger protection of PCB during wave soldering etc. Without any residue after the tape is removed from the gold finger.

Items

Datas

Backing

0.075mm Polyimide film

Adhesion

Silicone

Color

Amber

Thickness (mm)

0.11

Length (m)

33M

Tensile Strength (N/25mm

160

Elongation (%

60

Breakdown strength (N/25mm)

200

Voltage resistance (KV

12

Adhesion (N/25mm

6

Temperature Resistance (

260
